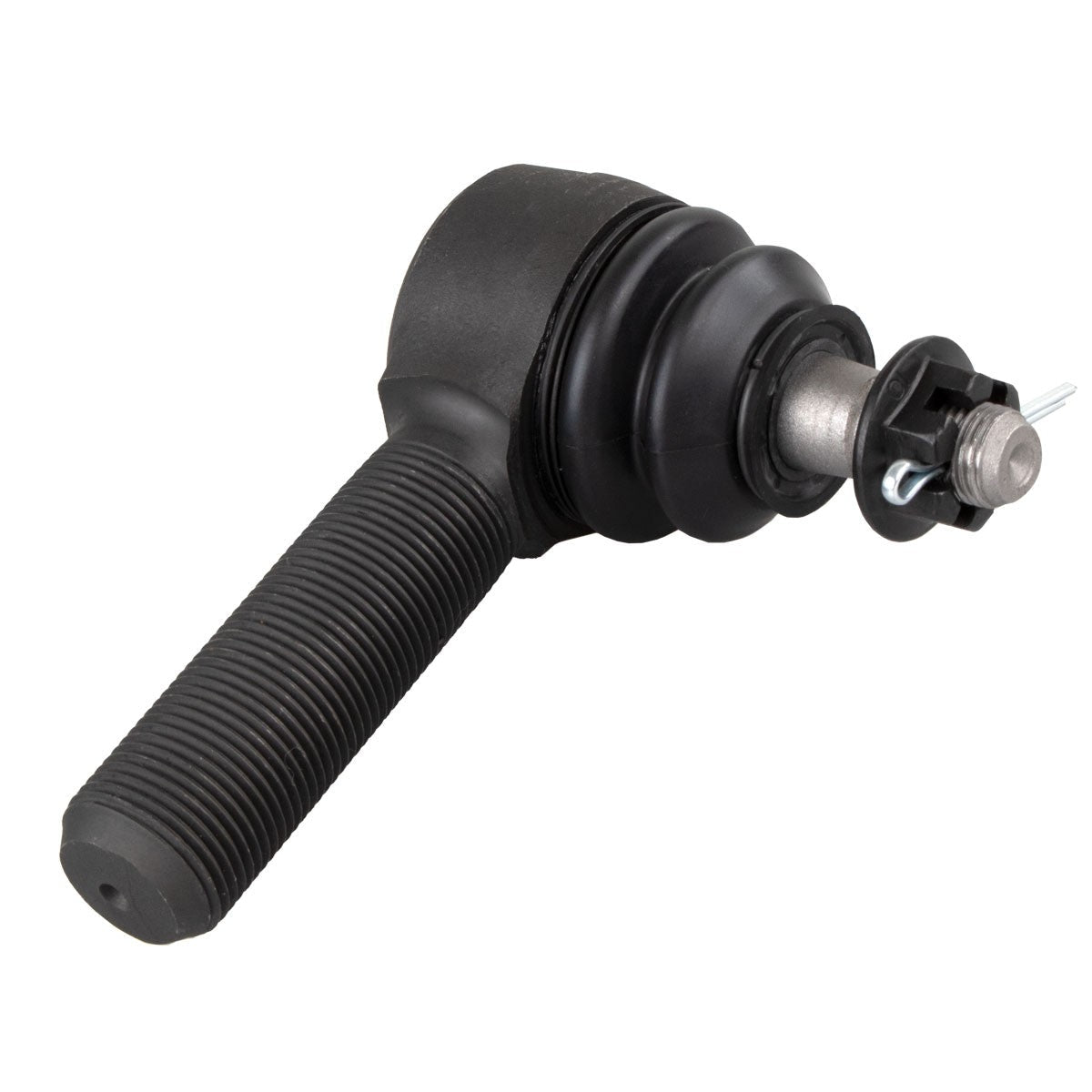

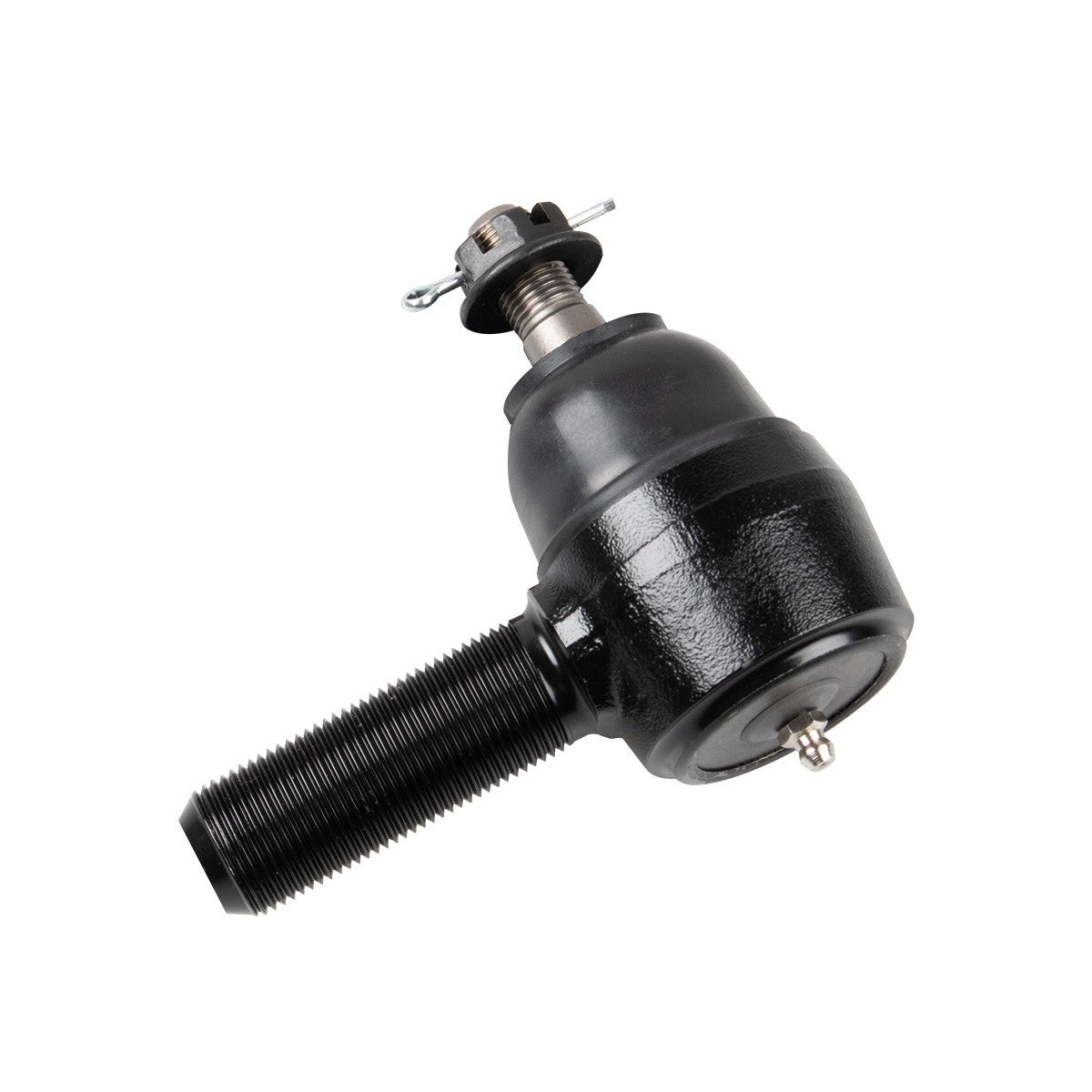

These tie rod ends allow you rebuild and service your Synergy HD Steering kit quickly and easily. If you have any questions about which part numbers you need, feel free to contact us for help.
These joints are NOT compatible with factory linkage or ANY other brand of steering.
| Part # |
Description |
Thread |
Taper |
Style |
| 4133-L |
HD TIE ROD END, DODGE DRAGLINK |
1-14 Left Hand UNF Thread |
1:8 TAPER (7.125 DEG INCL ANGLE) |
Standard |
| 4134-L |
HD TIE ROD END, DODGE TIE ROD |
1-14 Left Hand UNF Thread |
1:6 TAPER (9.5 DEG INCL ANGLE) |
Standard |
| 4136-L |
HD TIE ROD END, DODGE TIE ROD |
1-14 Left Hand UNF Thread |
1:8 TAPER (7.125 DEG INCL ANGLE) |
Standard |
| 4138-L
|
HD TIE ROD END, DODGE TIE ROD |
1 1/4-12 Left Hand UNF Thread |
1:6 TAPER (9.52 DEG INCL ANGLE) |
Standard |
| 4160-L |
HD TIE ROD END, DODGE DRAG LINK |
1-14 Left Hand UNF Thread |
1:8 TAPER (7.155 DEG INCL ANGLE) |
Single Plane |
| 4167-L |
HD TIE ROD END, DODGE TIE ROD |
1-14 Left Hand UNF Thread |
1:6 TAPER (9.52 DEG INCL ANGLE) |
Single Plane |
| 4168-L |
HD TIE ROD END, DODGE TIE ROD
|
1 1/4-12 Left Hand UNF Thread
|
1:6 TAPER (9.52 DEG INCL ANGLE)
|
Single Plane
|
| 4169-L |
HD TIE ROD END, DODGE TIE ROD
|
1-14 Left Hand UNF Thread
|
1:8 TAPER (7.125 DEG INCL ANGLE)
|
Single Plane
|
| Tie Rod End Fitment Table |
| Fitment |
Description |
Driver Side Tie Rod End |
Driver Side Tie Rod End Boot |
Passenger Side Tie Rod End |
Passenger Side Tie Rod End Boot |
| 8567-01 |
03-13 Drag Link |
4133-L |
4131-01 |
4160-L |
4131-01 |
| 8567-02 |
00-02 Drag Link |
4133-L |
4131-01 |
4160-L |
4131-01 |
| 8567-03 |
94-99 Drag Link |
4136-L |
4131-01 |
4160-L |
4131-01 |
| 8568-01 |
03-13 Tie Rod |
4134-L |
4134-02 |
4134-L |
4134-02 |
| 8568-02 |
00-02 Tie rod |
4134-L |
4134-02 |
4134-L |
4134-02 |
| 8568-03 |
94-99 Tie Rod |
4136-L |
4134-02 |
4136-L |
4134-02 |
| 8701-01 |
14+ Drag Link |
4160-L |
4131-01 |
4134-L |
4131-01 |
| 8702-01 |
14+ Tie Rod |
4138-L |
4134-02 |
4138-L |
4134-02
|
