Carli 2017-22 Ford Super Duty Pintop (4.5"/5.5" Lift) Suspension System

$5,326.00

Pairs well with

Product Description

Carli's 4.5" Super Duty suspension systems are the premier option for 2017-22 Ford Super Duty pickups. Carli has spent countless time tuning the shocks in this system, offering the best in both on road and off road ride quality and handling. This kit offers substantial on-road and off-road performance improvement. Customers can expect more control and bottom-out resistance than the Backcountry, but still have excellent on road ride. With the 4.5" system, there is also an increase in travel and ride quality over the 2.5" kits.

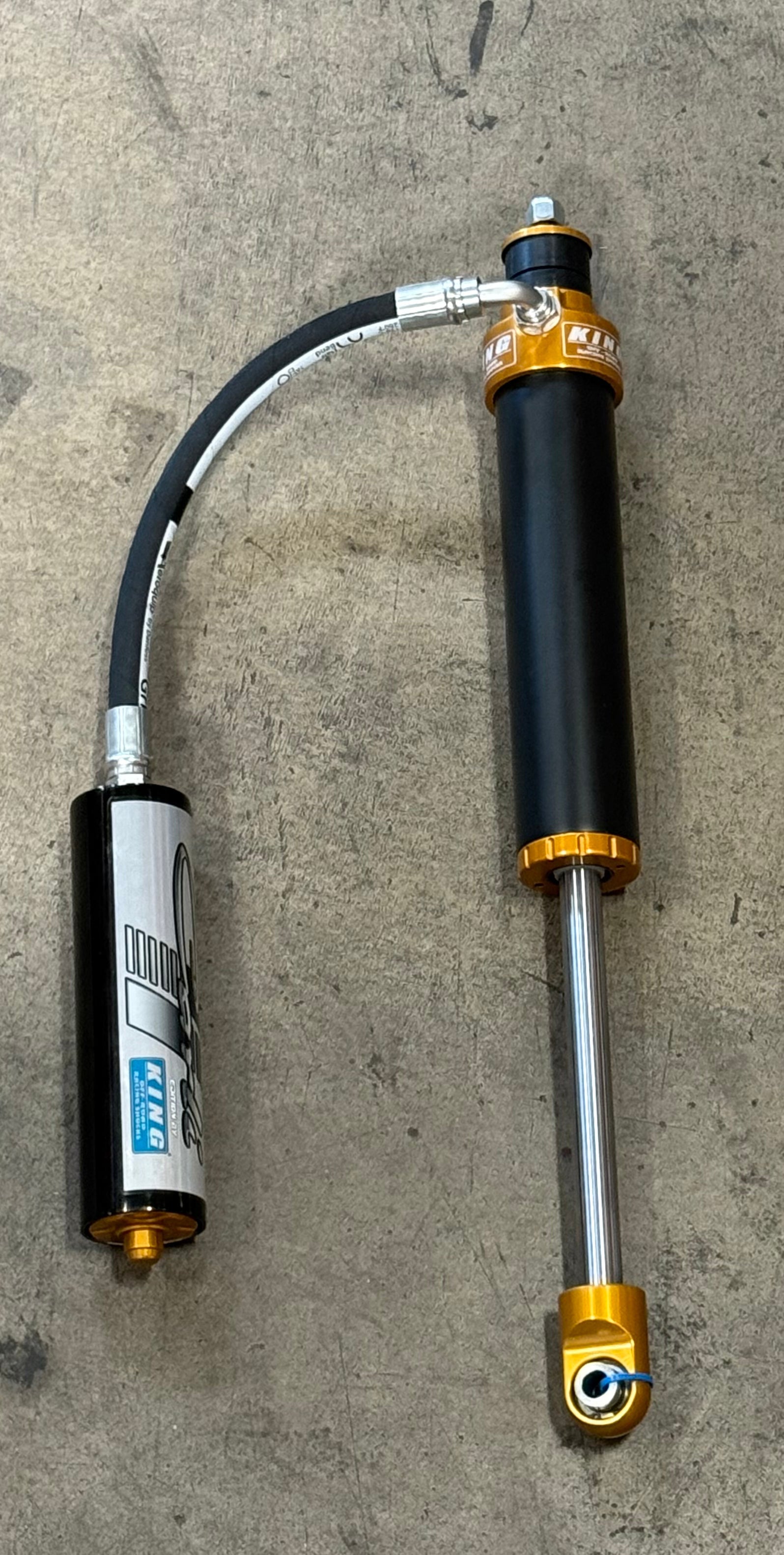

Carli designed a custom piston and custom tuned the King shocks to ride as smooth as possible on and off road. All of Carli's King shock shafts are machined and polished from a solid piece of 17-4 Stainless. The shocks are finished with King oil good to -55° F.

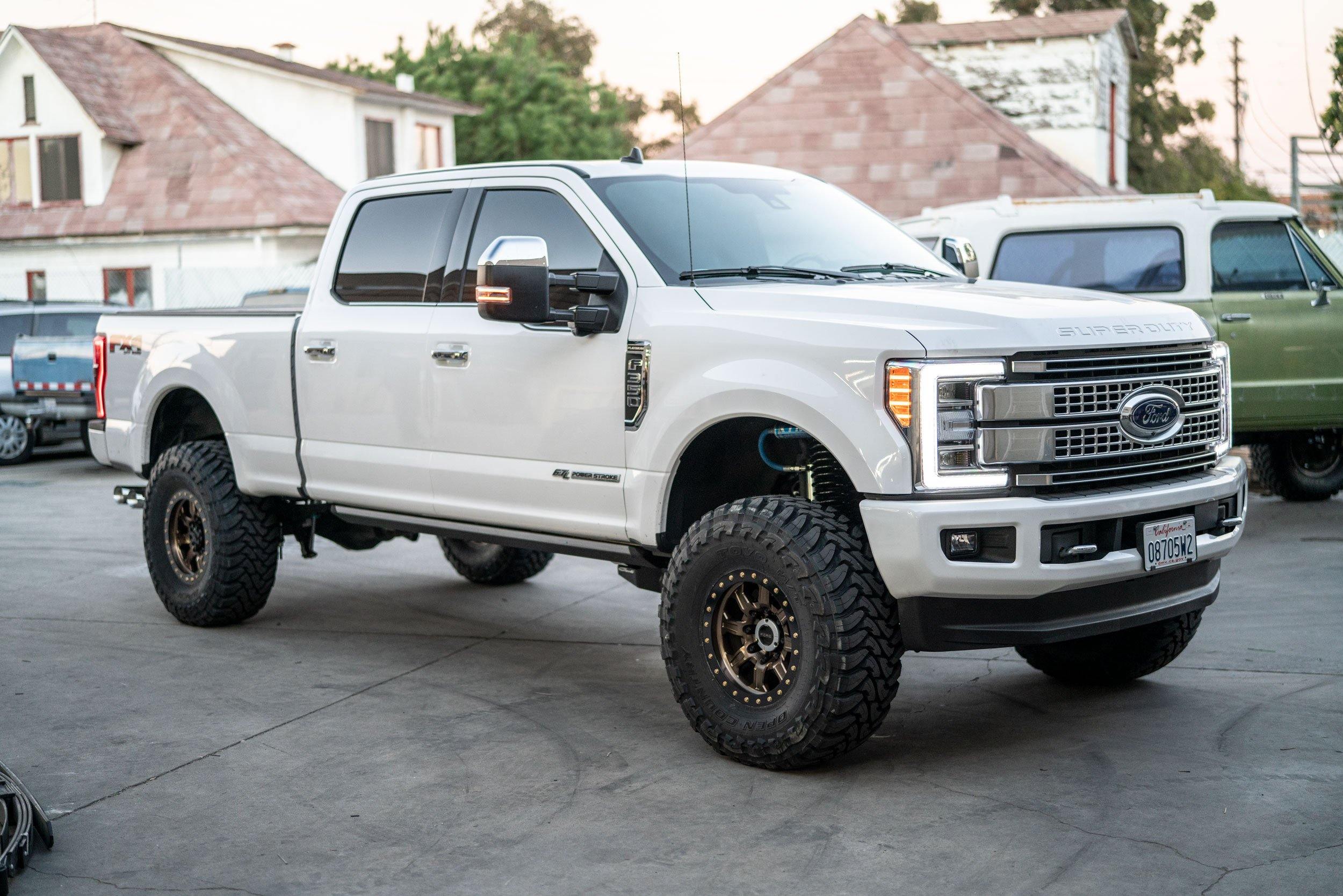

  The truck will sit 4.5/5.5" higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while the Sway Bar Link & Drop Brackets Kit resets the sway bar engagement point. The End Link Kit is listed as an “option”, but it’s necessary to run. Carli plans to release a Torsion Sway Bar in the near future so the end-link options were pulled from the base kit and made selectable in anticipation of the second option. Bump Stop Drops protect the shocks from over-compressing, the Adjustable Track Bar centers the front axle, and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, Carli includes Caster Shims to help achieve proper caster.

The 2020+ Ford F250/350 Platform is the same as the 17-19 but they lowered the front 1″ and the rear 1″-1.5″ depending on the cab configuration and 250/350 designation. For this reason, the only change to the suspension systems will be the stated lift height. The 4.5″ Lift Systems from the previous generation, 2017-19, are now 5.5″ for the 2020.


This system fits Ford F-250 and Ford F-350 4x4 trucks from 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 -Current

COMPONENTS

-CS-FMRC-05 Carli 4.5" Progressive Coil Springs
-CS-FATB-17 Carli 2017+ Ford Super Duty Adjustable Track Bar
-CS-FPTSPKG-4.5-17 Carli Ford Super Duty Pintop Shock Package
-CS-FORDBBL-4.5-17 Carli 2017+ Ford Stainless Brake Lines
-CS-FRAD-17 Carli 2017+ Ford Super Duty Radius Arm Drop Brackets
-CS-FBDF-4.5-17 Carli 2017+ Ford 4.5" Front Bump Stop Drops
-CS-FCASTERSHIM-4.5 Carli Ford Super Duty Caster Correction Shims

ALTERED VEHICLE CHARACTERISTICS

-4.5" of Lift on the Front/ 5.5" on 2020+ trucks
-2.5" of Lift on the Rear
-Vehicle is "Leveled"
-10.0" of Front Wheel Travel
-12.0" of Rear Wheel Travel

SWAY BAR/REAR SPRINGS

Carli provides the option to select whether or not sway bar drops/end links and rear springs/add a packs are included. In order to complete this system, you will need to select front sway bar drops/end links as well as either rear add a packs/blocks or rear full progressive leaf springs.

-Carli 2017+ Ford Sway Bar End Links - 4.5" Lift
-Carli 2017+ Ford Progressive Add a Packs
-Carli 2017+ Ford Super Duty Full Progressive Leaf Springs - 4.5" Lift

FITMENT GUIDE

Year Model Part Number

2017-2019 FORD F250 / F350 4x4 CS-F45-PT25-17

Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
5.5″ 3″-4″ 11″ 13″ 2.5″ 37″ x 13.5″
