Product Description
This level kit offers a cost effective way to level your truck, at the lowest price point possible without sacrificing ride. Our kit pairs a set of 5100 shocks with Carli's soft ride coils. The result dramatically improves ride, doubles front suspension travel, and levels the truck by increasing front height 2.5" over factory. This system also retains full factory payload and towing.
The front axle will be slightly pulled to the Driver’s side following installation of this level, which can be corrected with Carli's track bar.
This system fits Dodge Ram 3500 4x4 trucks from 2013 to current with factory rear leaf springs.
We recommend a 35” tire on an 18” wheel that’s no more than 9” wide with 0 to +27 offset. To fit 37s on a Ram truck we recommend a +18 to +27 offset wheel that is no wider than 9,” as well as some mild trimming of the plastic fender liner and maybe pinch weld depending on the tire.
Recommended unloaded tire pressure is 45F/40R. The addition of a Carli Low-Mount Steering Stabilizer is recommended for any tire over factory size.
THIS IS A DIESEL ONLY SYSTEM, if you have a gas truck please email us so we can get you set up with something that fits.

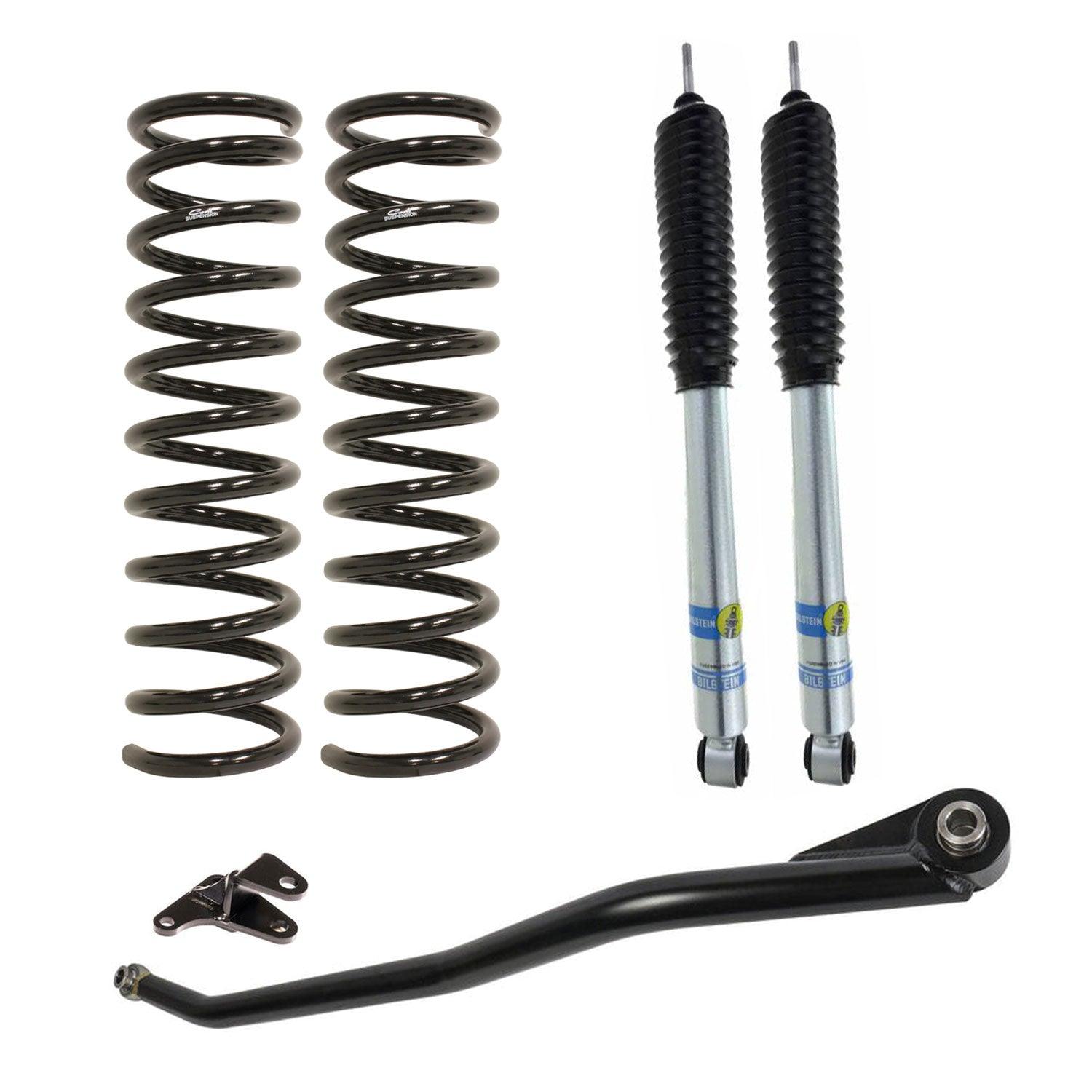

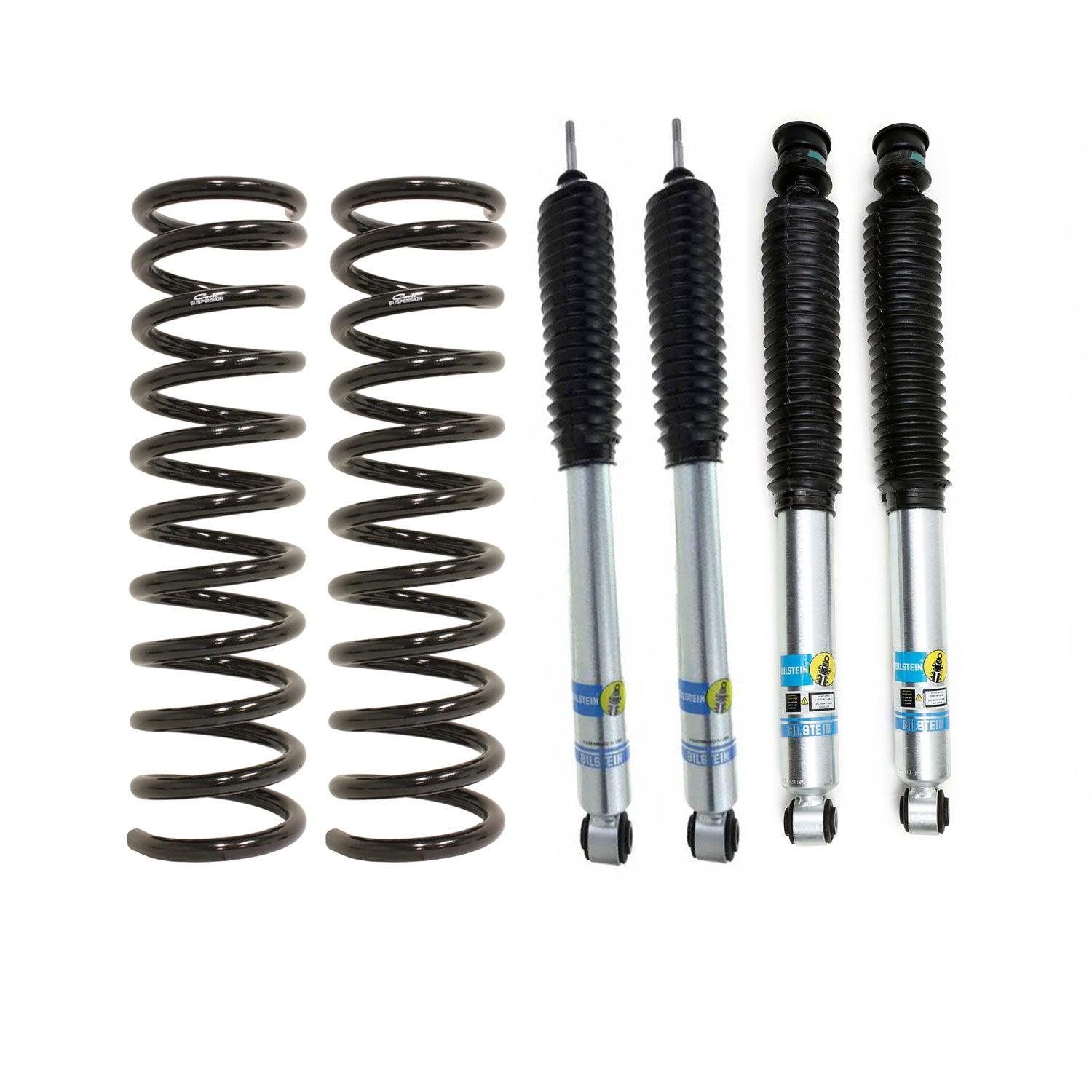

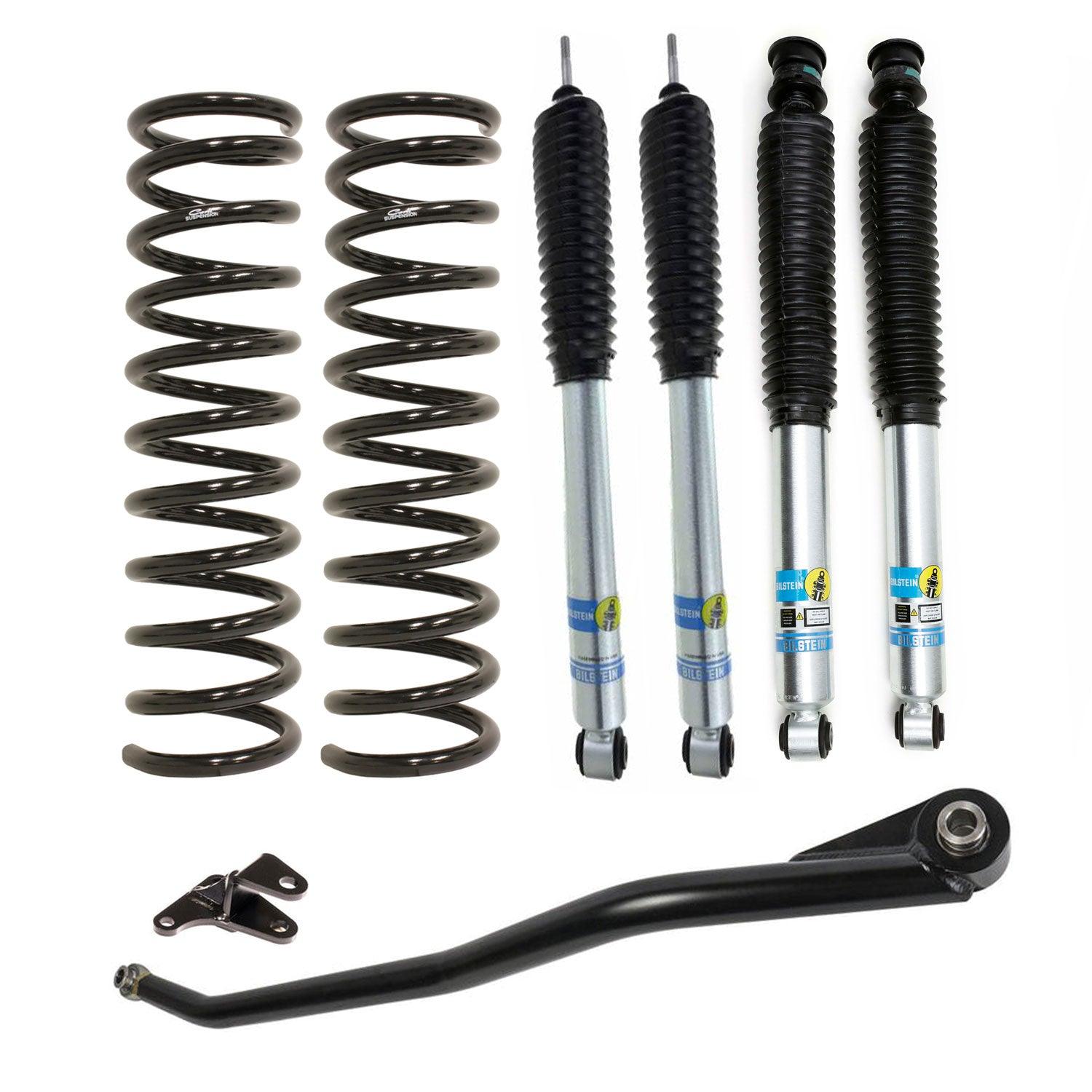

INCLUDES
-Front standard Bilstein 5100 shocks
-Front Carli Linear Rate Coils
OPTIONAL
- Add matching standard 5100 rear shocks and or a Carli track bar
SPECIFICATIONS
-2.5" Front Lift
-Stock Rear Height/Towing Capacity
-Level Ride Height
-Designed for Diesel Applications Only
INSTRUCTIONS:
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
|---|---|---|---|---|---|
| 2.5″ | 0″ | 9″ | 9″ | 2.0″ | 35″ / 37" |
